The equipment on the platform are available during the UR BIOGER’s standard opening hours. Booking the equipment is mandatory and can only be done via the online booking system.

The platform’s facilities are divided between two locations : outside (46 m²) and inside (21 m²) of the confined zone (835 m²). The proximity of the imaging equipment and the sample preparation laboratory to the L2 growth chambers for plants and fungi provides an infrastructure well-suited to the study of phytopathogenic GMOs.  In particular, this proximity is essential for live imaging of microorganisms, phytopathogens and infected plants.






Sample preparation – Sectioning : Histology – Cytology

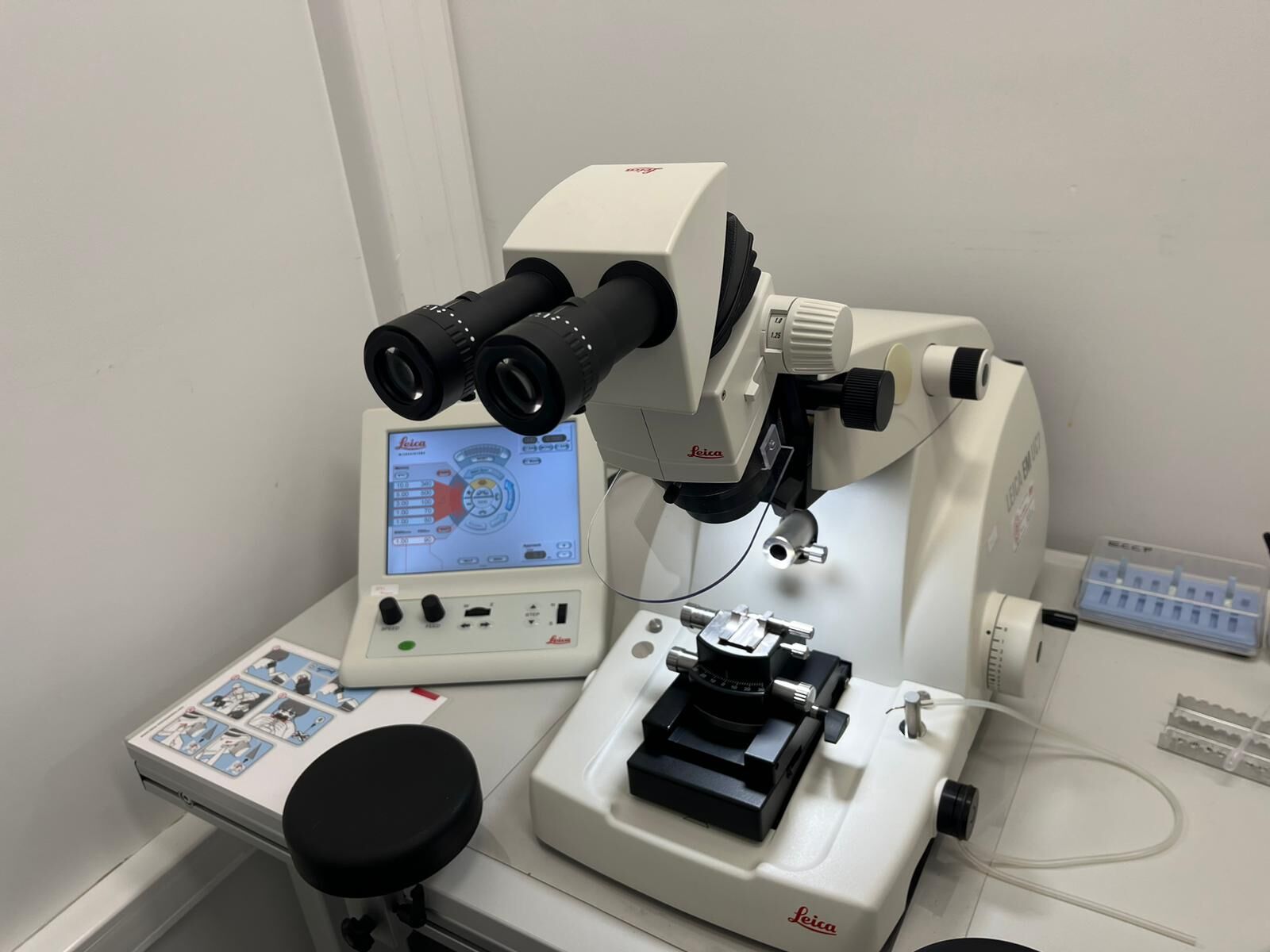

Ultramicrotome_LeicaUC7



For the preparation of thin sections ranging from 50 to 200 nm for TEM imaging, or semi-thin sections for photonic imaging.

A heating stage and an optical microscope are available to check the quality of the sample.

KnifeMaker_LKB7800
GlassKnife

Making glass knives for the use on an ultramicrotome. For the preparation of semi-thin sections for photonic imaging, or for trimming resin blocks prior to the preparation of thin sections for TEM imaging.









Photonic Imaging

Confocal microscope

Confocal_SPE

Microscope body

DMI4000 - inverted

Light source

Lasers

     Diode 405, 488, 532 et 635 nm;

Lamp

     120 W Metal Halide lamp for fluorescence – EL6000 (Leica)

     Halogen Lamp for transmission mode (Leica)

Objectifs

10x/0.30 DRY;

40x/1.15 OIL;

63x/1.30 OIL;

Filtres

A/ I3/ N2.1 et RFP

Detectors

1 PMT

1 PMT Trans

Complementary modules

Software

Leica Application Suite

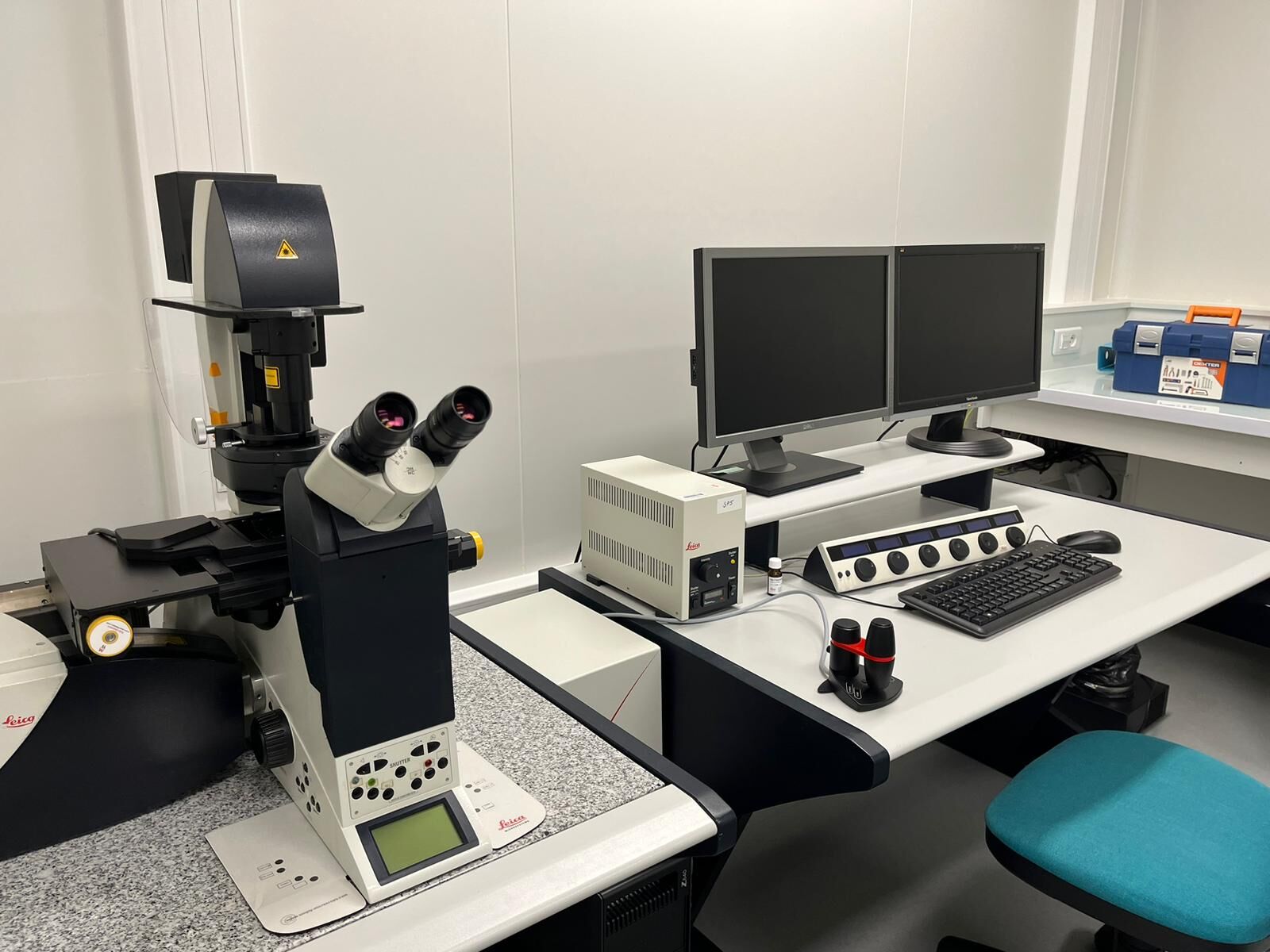

Microscope body

DMI6000B - inverted

Motorised stage

Light source

Lasers

     Diode 405,

     Laser Argon (458, 476, 488, 496, 514)

     Diode laser 561 nm

     Laser Helium-Neon 633 nm

Lamp

     120 W Metal Halide lamp for fluorescence – EL6000 (Leica)

     Halogen Lamp for transmission mode (Leica)

Objectives

10x/0.40 DRY;

20x/0.7 DRY;

40x/1.25-0.75 OIL;

63x/1.15 EAU

Filters

DAPI/ GFP_LP/ TxRed

Système de détection

Classic galvo scanner

Resonant scanner

Detectors

1 Hybrid

4 PMT

1 PMT Trans

Complementary modules

Tiles Scan & Mark and Find

Timelaps

PH, DIC, DIC-POL

Software

Leica Application Suite X (LAS X)





Widefield microscope


Microscope body

DMI5500B - upright

Motorised stage

Light source

Lamp

     120 W Metal Halide lamp for fluorescence – EL6000 (Leica)

     Halogen Lamp for transmission mode (Leica)

Objectives

10x/0.30 DRY

20x/0.50 DRY

40xPH/0.75 DRY

63xPH/1.25 OIL

100x/1.40-0.70 OIL

Filters

A/ I3/ GFP/ YFP/ TX2 et RFP

Camera

Leica DFC450C (color)

Leica K5

Complementary modules

Navigator

Tiles Scan & Mark and Find

z-stack

Timelaps

DIC

Software

Leica Application Suite X (LAS X)





Stereomicroscope


Microscope body

MZ16F - upright

Source lumineuse

Mercury lamp (ebq-100) for fluorescence

Leica CLS 150X for transmission

Filters

GFP/mCherry

Objectives

Leica PLANAPO 1.0X

Camera

INFINITY 3-1, LUMENERA, COLOR, 1.4 Mpx 2/3"

MultiZoom

Continuous zomm from 0.75X to 11.5X
